A Network Decomposition

We consider a decomposition of the following network utility optimization problem

SYS:

$\begin{aligned} &\text{maximize} \quad & \sum_{r\in{\mathcal R}} U_r(\Lambda_r) \\ &\text{subject to} &\quad \sum_{r: j\in r} \Lambda_r \leq C_j, \quad j\in{\mathcal J}, \\ &\text{over} &\quad \Lambda_r\geq 0,\quad r\in{\mathcal R}.%\tag{{SYS}{\mathcal R}} \end{aligned}$

Here each route $r\in{\mathcal R}$ had a utility $U_r(\Lambda_r)$ for rate $\Lambda_r$ . We then maximize the aggregate of these utilities subject to the condition that the rates using a resource $j\in{\mathcal J}$ do not exceed the capacity of that resource $C_j$ .

Here, we saw two examples of queueing systems which implicitly optimized a network utility optimization: a closed queueing network, optimizing a $\log$ function; and TCP Reno, optimizing an inverse square function. The closed queueing network just naively stored-and-forwarded packets on each route. TCP Reno had an internal network which, just like the closed network, stored-and-forwarded packets but also included a congestion controllers on the each route which controlled the number of packets on each route. In other words, adding the congestion controllers changed the optimization from a log utility function to an inverse square function. We now wish to mathematically describe that how that change in the optimization occurred.

In addition to the system optimization , we consider the following two further optimization problems:

NET( $w^*$ ):

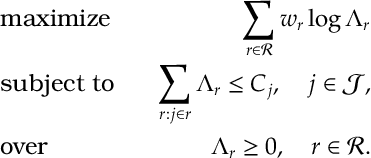

$\begin{aligned} \label{Dcomp:Net} &\text{maximize}& \quad \sum_{r\in{\mathcal R}} w_r \log\Lambda_r \notag\\ &\text{subject to}& \quad \sum_{r: j\in r} \Lambda_r \leq C_j, \quad j\in{\mathcal J},\\%\tag{NET($w$)}\\ &\text{over}& \quad \Lambda_r\geq 0,\quad r\in{\mathcal R}.\notag\end{aligned}$

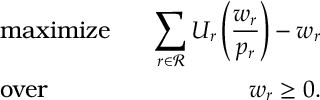

USR $_r(q_r)$ : 5e39ad73ed58e5c34c0104bd7c773cf9

LIN $_r$ :

ecc354722aff06f5f23aea746560cd01

The network optimization represents the rate allocated by a queueing network.
The user optimization represents the optimization conducted by a congestion controller.

We show that the system optimization can be decomposed into the network and the users sub-problems.

Decomposition: a quick discussion

Consider the following optimization

$\begin{aligned} \text{maximize} \quad \sum_{r\in{\mathcal R}} u_r(\Lambda_r)\quad \text{subject to} \quad \Lambda_r\in{\mathcal C}_r , \quad r\in{\mathcal R} \quad \text{over} \quad \Lambda_r\geq 0,\quad r\in{\mathcal R}.\end{aligned}$

Here for each route $r\in{\mathcal R}$ , $u_r$ is a concave function and each ${\mathcal C}_r$ is a convex set.

It is fairly, immediate that this is equivalent to each route, $r\in{\mathcal R}$ , solving the optimization, i.e.

$\max_{\Lambda \in \prod_r {\mathcal C}_r} \sum_{r\in{\mathcal R}} u_r(\Lambda_r) =\sum_{r\in{\mathcal R}} \max_{\Lambda_r \in {\mathcal C}_r} u_r(\Lambda_r)$

In this way the optimization is decomposed in to smaller problems that can be solved for each route in ${\mathcal R}$ .

The Network Decomposition: further discussion

Unfortunately, the optimization does not in general have the nice product structure discussed above. So, instead, let’s look at it’s Lagrangian function:

$L_{SYS}(\Lambda, z : p ) = \sum_{r\in{\mathcal R}} U_r(\Lambda_r) + p_j \Big(C_j -\sum_{r: j\in r} \Lambda_r - z_j \Big)$

[Network Decomposition] Given $U'_r(0)=\infty$ , there exists variables $\Lambda^*=(\Lambda^*_r: r\in{\mathcal R})$ , $w^*=(w^*_r:r\in{\mathcal R})$ , $q^*=(q^*_r:r\in{\mathcal R})$ where $\Lambda^*$ optimizes $(w^*)$ , $w_r$ optimizes USR $_r$ ( $p_r^*$ ) for $r\in{\mathcal R}$ , and LIN $_r$ holds iff $\Lambda^*$ optimizes SYS.

Let’s see what conditions $w^*$ must satisfy in order for NET( $w^*$ ) to have a solution that is also optimal for SYS.

After adding slack variables, $z$ , and Lagrange multipliers, $q$ , the Lagrangian of NET( $w^*$ ) is

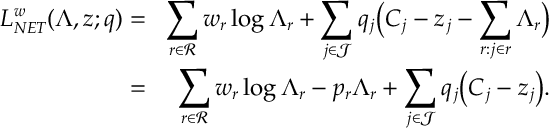

$\begin{aligned} L_{NET}^w (\Lambda,z;q)&=&\sum_{r\in{\mathcal R}} w_r \log\Lambda_r + \sum_{j\in{\mathcal J}} q_j\Big( C_j - z_j-\sum_{r: j\in r} \Lambda_r \Big)\\ &=&\sum_{r\in{\mathcal R}} w_r \log\Lambda_r - p_r\Lambda_r + \sum_{j\in{\mathcal J}} q_j\big( C_j - z_j\big). \end{aligned}$

Here, we use the shorthand $p_r=\sum_{j\in r} q_j$ . The Lagrangian for SYS differs having $U_r(\Lambda_r)$ in place of $w_r\log \Lambda_r$ . The (KKT) conditions for optimality are complementary slackenss, dual/primal feasiblity, and stationarity. The complementary slackness and dual/primal feasibility conditions: $q^*_jz^*_j=0$ and, $q^*_j\geq 0$ , $\sum_{r:j\in r} \Lambda^*_r \leq C_j$ $j\in{\mathcal J}$ , are the same for NET( $w^*$ ) and SYS. Thus, the optimality condition that differs is stationarity. For the NET( $w^*$ ) and SYS problem, this is

$\label{Dcomp:1} \frac{w^*_r}{\Lambda^*_r}=p^*_r,\qquad\text{and}\qquad U_r(\Lambda^*_r)=p^*_r, \qquad \forall r\in{\mathcal R}.$

Due to the first equality, we can equivalently express $w^*_r$ in terms of $p_r^*$ in the second equality

$\label{Dcomp:2} w^*_r=\Lambda^*_r p^*_r,\qquad\text{and}\qquad \frac{1}{p^*_r}U_r\Big(\frac{w^*_r}{p^*_r}\Big)=1.$

Notice the first term is LIN $_r$ , and the second term is precisely the optimality condition for USR $_r(p^*_r)$ . In otherwords, the conditions which $w^*$ must satisfy for the optimal solution to NET( $w^*$ ) to be optimal for SYS are precisely to satisfy LIN $_r$ and optimality of USR $_r(p_r^*)$ . So, we can use NET( $w^*$ ), USR $_r(p_r^*)$ and LIN $_r$ to construct a solution to SYS.

Conversely, we know an optimal solution to SYS exists. As discussed, this satisfies the same complementary slackness and feasibility conditions as NET( $w$ ) [for any $w$ ]. The SYS problem must also satisfy the stationarity condition $U_r(\Lambda^*_r)=p^*_r$ . So we can just define a variable $w_r^*:=\Lambda_r^*p^*_r$ . Thus we have LIN $_r$ and the stationarity condition for NET( $w^*$ ) and, as argued between and , $w^*_r$ is also an optimal solution to USR $_r(q^*_r)$ . Thus the optimality of SYS implies the existence of solutions simultaneously solving $(w^*)$ , USR $_r$ ( $p_r^*$ ) and LIN $_r$ .

Decomposition results often rely on some form of separability. Eg. $\max_{x_1\in{\mathcal X}_1, x_2\in{\mathcal X}_2 } L(x_1)+L(x_2)=\max_{x_1\in{\mathcal X}_1}L(x_1) + \max_{x_2\in{\mathcal X}_2 } L(x_2)$ where $L$ is an objective function or a Lagrangian. This decomposition is somewhat different: it considers what conditions the parameters of certain sub-optimizations must satisfy to solve a global optimization.

In the context of a queueing network, we interpret this result as follows. A congestion controller on each route $r$ , chooses a number of packets to send across the network $w_r$ . As we saw for a closed queueing network, the network solves the optimization $(w^*)$ the packets receive rate $\Lambda_r$ and delay/loss $q_r$ satisfying $LIN_r$ . On receiving $q_r$ , the controller updates $w_r$ to optimize USR $_r(q_r)$ . This feedback loop optimizes $SYS$ by respectively solving $NET$ , $USR$ and $LIN$ . In the context of allocating resources, we interpret $w_r$ as wealth decided to be spent by route $r$ and $p_r$ the price per unit of resource $\Lambda_r$ .
